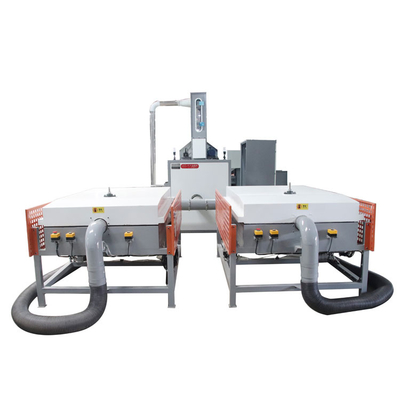

1. Instead of maunal will be the whole package materials fractional evenly to be the machine, and can protect the machine,prolong the serivce life of the machine.
2. Adopt PLC programmable control, can be one independently, feeding,mixed,quantitative, cotton and feather filling process.
3,The production line uses high speed computer control system. The whole set of equipment can complete fiber
opening, computer accurate quantitative, weighing and uniformly filled into the bag. It is mainly used for
quantitative filling fiber pillow or cushion.The machine has the advantages that the weight of the fiber cotton is
set by the computer. Besides,the weight of the fiber was adjusted conveniently.The fiber opening machine is equipped with metal alarm and overload protection device. 4,one person to operate, which save the cost. 5,The weighing range is 300g-1500g and the accuracy is ±25 g.
Product Name | Fiber automatic feeding machine | Micro-fiber carding machine | Sucking machine | Weighingsystem | Filling system |
Model | ZLD005H | ZLD003L-1 | ZLD005B -1 | ZLD003G-1 | ZLD005A-3 |
Capacity | 60-200kg/h | 260-300Kg/h | 260-300Kg/h | 150-200Kg/h | 100-200Kg/h |
Voltage | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
Power | 1.85kw | 11.8KW | 3.0KW | 2.0KW | 15 KW |
Dimensions | 2200*1600*2100mm | 2200*1400*1100mm | 700*600*900mm | 4000*2000*3800mm | 1800*1000*1300mm |
Weight | 720kg | 1000kg | 65kg | 1500kg | 500kg |
Total set | Part 1 | Part 2 | Part 3 | Part 4 | Part 5 |
