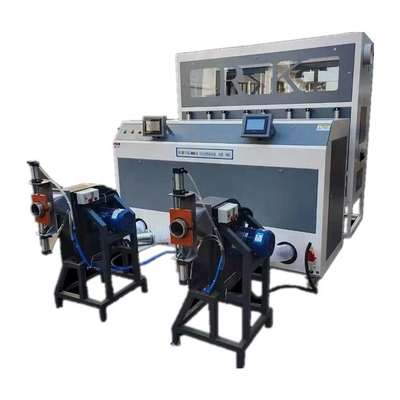

We provides a variety of models and multiple purposes of down & fiber filling machines, which are widely used in clothing, home textiles and toy processing industries. This equipment can be filled with 30/40/50/60/70/80/90 down, feather silk, ball fiber and short polyester fiber.
The machines are fully automatic computer intelligent control, accurate and stable, and one machine is multi-purpose. Support remote management and system upgrade, support multiple languages.
SPECIFICATION FOR Automatic Weighing High Efficiency Down Filling Machine | ||
Item No. | KWS-688 | |
Control System | 4 Cycling weighing scales | |
Filling port | 2 | |
Weighing range | 10-1200g (with 4 weighing scales) | |
Volume | 2m³ | |
Raw material range | 30-90% duck down, goose down, fiber (cotton ball, fake down) | |
Power | 12KW | |
Voltage | 380V/50Hz | |
Site area | >12㎡ | |
Weight | 756KG | |
Pressure | 0.75mpa | |
Gas supply source | Supply by user 15kw Air compressor | |
1) Working based on high air pressure which is damage-free for the down , enables to keep the original softness & elasticity of the down effectively.
2) High quantitative precision and adjustable weighing error ranges according to the needs of the production.
3) Triple weighing system works in a cycling pattern which guarantees the fast working speed.
4)6 weighing scales are equipped, guarantees any weight requirements.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers are available to provide service overseas.
